LED Strip Profile Channel Light Diffuser ADP-1606B LED Aluminium Profile for LED Strip
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | CE/RoHS |
| Model Number: | ADP-1606B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Aluminum Profiles For LED Tape Light | Material: | 6063-T5 Aluminum Alloy + PC |
|---|---|---|---|
| PC Cover Material: | Clear/ Diffuser/Opal/Black For Options | Accessories: | End Caps + Mounting Clip |
| Available Lengths: | 1m, 2m, 3m Or Customized | LED: | SMD2110/2014/2216/2835/3014/3528 For Options |
Product Description

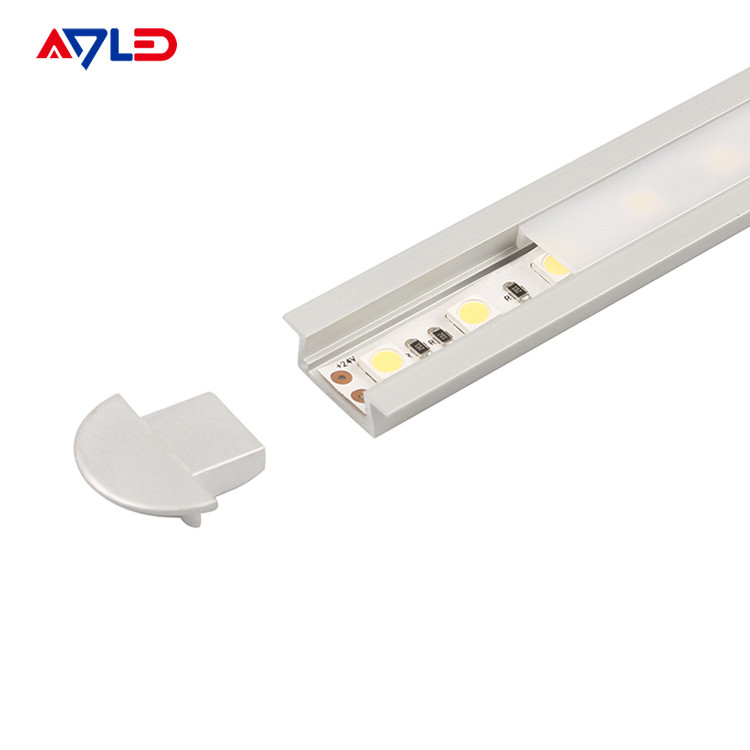

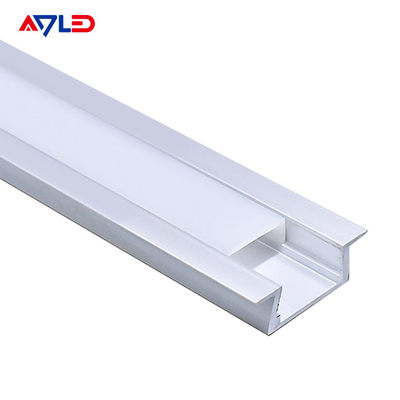

LED Strip Profile Channel Light Diffuser ADP-1606B LED Aluminium Profile for LED Strip
Dimension(mm):
LED Strip Profile Specifications:
| Name | ADP-1606B |
| PC Cover | Clear, Diffuser, Opal, Black |
| Dimension | 15.8X6.7mm |
| PCB Width | 11mm |
| LED QTY | 240LED/m or above |
| Suitable LED | 2110/2014/2216/2835/3014/3528 |
| Installation method | Embedded installation, Ceiling mounted installation. |
PC Cover:

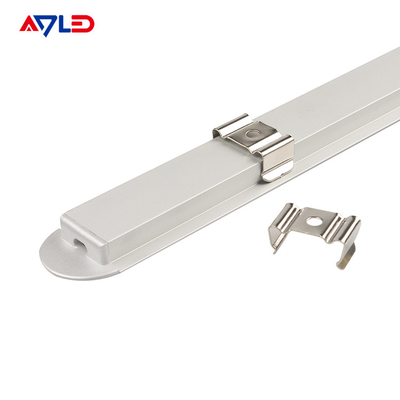

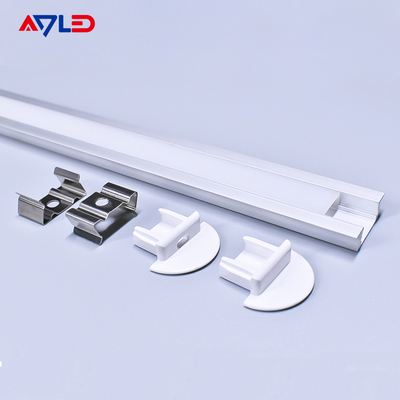

LED Strip Profile Accessories:
|
|
|
| End cap with hole | End cap without hole | Mounting clip |
Surface Mounted LED Aluminum Profile:
Different types of LED strip diffuser
LED aluminum profiles, LED aluminum channels or LED aluminum profiles. Aluminum profiles for LED strips can be seamlessly embedded into recesses in cabinets, stairs, ceilings, closets, floors and walls.
Aluminium profiles are the perfect addition to the ADLED STRIPS. The STRIPS can be glued into the profile. The aluminum profiles are in anodized aluminium, white RAL 9016 or black similar to RAL 9005 available. The profile can simply be sawn to any required length or ordered in the required custom length. Different versions of Aluminium profiles and different shapes of plastic covers are available.
Why choose LED light strip diffuser?
You can see clearly from the picture, LED strip with diffuser provides spotless lighting, it looks more softer and comforable than spot lighting LED strip lights without diffuser cover. LED strip channel with diffuser is important in lighting, it can protect your eyes. Also, LED aluminum strip can installed flatly, offer more beautiful lights in even illumination.
