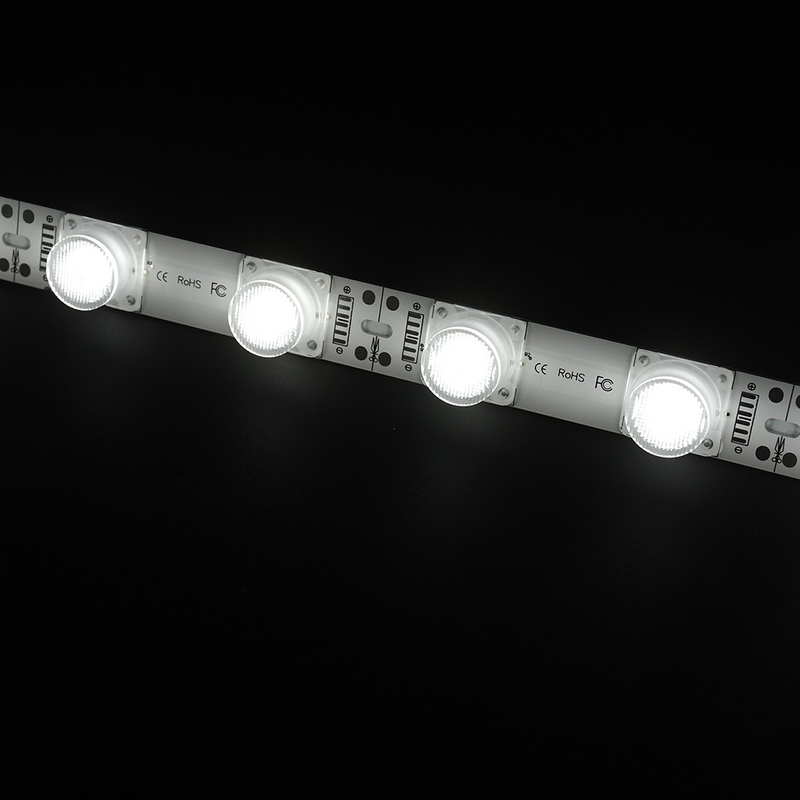

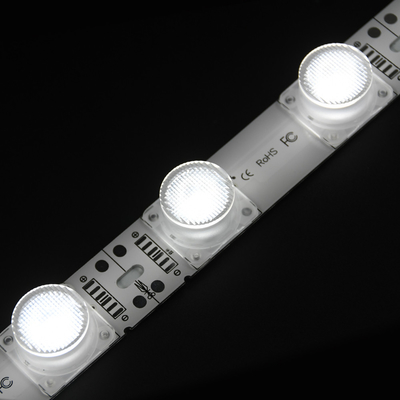

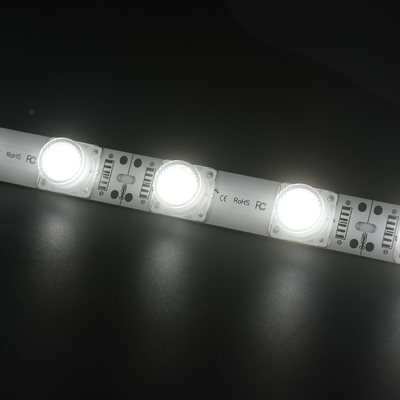

Provide 5 Years Of Reliable Lighting With An LED Light Bar Featuring 18 LEDs Per Meter, Available In 24V And 12V Options
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS/FCC |
| Model Number: | ADS-E3030-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 2pcs/Package |
| Delivery Time: | 7days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Edge-lit LED Module For Double-sided Light Boxes, Featuring SMD3030 LEDs, 28.8 Watts, 2160 Lumens, Designed As A Side-lit Bar. | Model: | ADS-E3030-18 |
|---|---|---|---|
| Voltage: | DC12V/24V | LEDs Per Metre: | 18 |
| Watts Per Metre: | 28.8W/m Or Custom | Colour Temperature: | 3000K/4000K/6500K |
| IP Rating: | IP67 | Beam Angle: | 15x45° |
| Length: | 1006mm | Warranty: | 5 Years |
| Highlight: | 24V LED light bar,12V LED light bar,18 LEDs Per Meter LED Bar |
||
Product Description
Provide 5 years of reliable lighting with an LED light bar featuring 18 LEDs per meter, available in 24V and 12V options, with beam angles of 15x45 degrees. Suitable for LED sign boxes, offered in IP20, IP65, and IP67 ratings
Benefits of Light Bars for LED Fabric Frame
1. Best optical lens for LED lighted bar

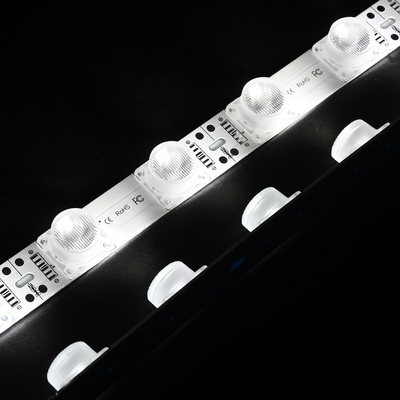

We take pride in our high-power LED light bar equipped with optical lenses featuring a precise 15x45° beam angle. This configuration ensures optimal lighting for shadow box signs, providing superior illumination and highlighting details effectively.
2. IP20 & IP67
IP20 non-waterproof LED light bars are ideal for indoor use, specifically designed for edge-lit LED light boxes where protection from moisture is not required.
IP67 waterproof LED light bars are specifically engineered for outdoor commercial sign lighting applications, ensuring durability and resilience against varying weather conditions.
|
|
| IP20 edge LED light bar | IP67 edge LED light bar |
3. Easy install in Box Signs
IP20 type: Male & female quick connectors easy plug & play in led church signs. You can install bar lights led with back adhesive to the aluminum frames of lighted sign box.
IP67 type: You can connect LED Power Supply with DC quick connectors, fix light bars led with mouting clips to the frames of double sided led sign board.
4. Epistar chip
Our rigid bar led powered by Epistar SMD 3030, all approved UL, CE, ROHS, FCC, KC certificates, guarantee 5 years warranty.
5. 1.6mm Aluminum PCB Board
We use 1.6mm thick aluminum board for led lighting bars , to make sure good quality products and better heat sinking.
6. High Lumen led light bar module
Standard aluminum led light bar with 2160lm, super bright in double sided illuminated sign.
7.Environmentally Friendly: LEDs are environmentally friendly due to their low energy consumption and lack of hazardous materials like mercury.
8.Low Maintenance: LED light bars require minimal maintenance over their lifespan, reducing operational costs and downtime.
9.Enhanced Aesthetics: They contribute to the overall aesthetic appeal of the LED fabric frame, enhancing the visibility and attractiveness of displayed content.
LED Light Bar Distributor
We are proud of OEM & ODM services for led light bar china since 2016, the first factory to develop light led bar in China.
Top distributors & sign light box manufacturers in Europe & USA speak highly our home led light bar.
We always stock linear led light bar materials, standard products can ship out in 7days.
What is Light Bars for LED Fabric Frame?
Light Bars for LED Fabric Frame also be defined sign box lighting, sign LED modules, lightbox solutions or diy light box LED strip.
Various LED LED light bar available.
Different beam angles: 15x45°, 10x30°, 10x60° good quality LED light bars for LED Fabric Frame
Different LEDs: SMD 3030, SMD 3535, SMD 1818 LED Light Bars for Fabric Frame Light Box
Different sizes: 1m, 0.5m, 0.3m, 0.4m etc
Different colors: Warm white, Natural White, White, Cold White, RGB, RGBWW, RGBW LED bar strip lights.
Different voltage: 12 volt LED light bar & 24 volt LED light bars
Different waterproof grade: IP20 IP67 optional
LED bars lights create even illumination in advertising sign boxes, saving labor cost in installation for led light boxes.
Light Bars for LED Fabric Frame Specification:
| Model | ADS-E3030-18 |
| LED type | Epistar chip SMD3030 LED |
| LEDs per metre | 18LEDs |
| Operating voltage | DC12V/24V |
| Watts per metre | 28.8W |
| Colour temperature | 3000K/4000K//6500K |
| IP rating | IP67 |
| Length | 1006mm |
| Driven Mode | Constant Current |
| Beam angle | 15x45° |
| PCB Width | 25mm |
| Warranty | 5 Years |
| Certifications | UL/CE/RoHS/FCC |
| Dimmable | 0-100% dimmable by LED strip light dimmer |
Light Bars for LED Fabric Frame Application:
• Advertising Light Box • Exhibit Trade Show Displays
• Exhibition Display Stands • Fabric LED Light Box
• Fabric Light Box Outdoor • LED Advertising Light Box
• LED Light Box • LED Light Box Frame
• Light Box Signs Outdoor • SEG Fabric Frames
• SEG Lightbox • SEG Solutions
• Sign Box Frame • Wall Light Box
Light Bars for LED Fabric Frame FAQ
Q: Which lighting project use your LED light bars?
Our LED light bars used in Olympic Games light boxes, Coca Cola poster box, Metro LED light frames, Airport LED fabric frame, etc.
Q: How to install LED light bars in double-sided fabric frame displays?
Step 1 : Caculate LED light bars quantity and how much LED power supply
Step 2: Clean the surface of aluminum frame light box
Step 3: Install LED light bars to two sides or four sides of lightbox
Step 4: Connect LED power supply with LED bar module
Q: How many piece (1m LED bar) can connect in parallel?
You can connect maximum 3pcs LED light bar.
Q: Can I cut LED light bars?
Yes, you can cut LED light bars at the soldering point.
DC12V edge lit LED bar can be cut each 1LED
DC24V edge lit LED bar can be cut each 2LEDs
