Aluminium Channel for Led Strip Channel Diffuser Led Band Mit Alu Schiene
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | CE/RoHS |
| Model Number: | ADP-1606 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Aluminium Channel For Led Strip Channel Diffuser Led Band Mit Alu Schiene | Material: | 6063-T5 Aluminum Alloy + PC |
|---|---|---|---|
| PC Cover Material: | Clear/ Diffuser/Opal/Black For Options | Accessories: | End Caps + Mounting Clip |
| Available Lengths: | 1m, 2m, 3m Or Customized | LED: | SMD2110/2014/2216/2835/3014/3528 For Options |
Product Description
1606 Aluminum Profiles for LED Tape Light
Product Characteristics:

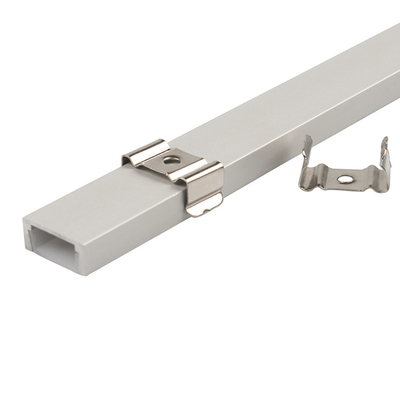

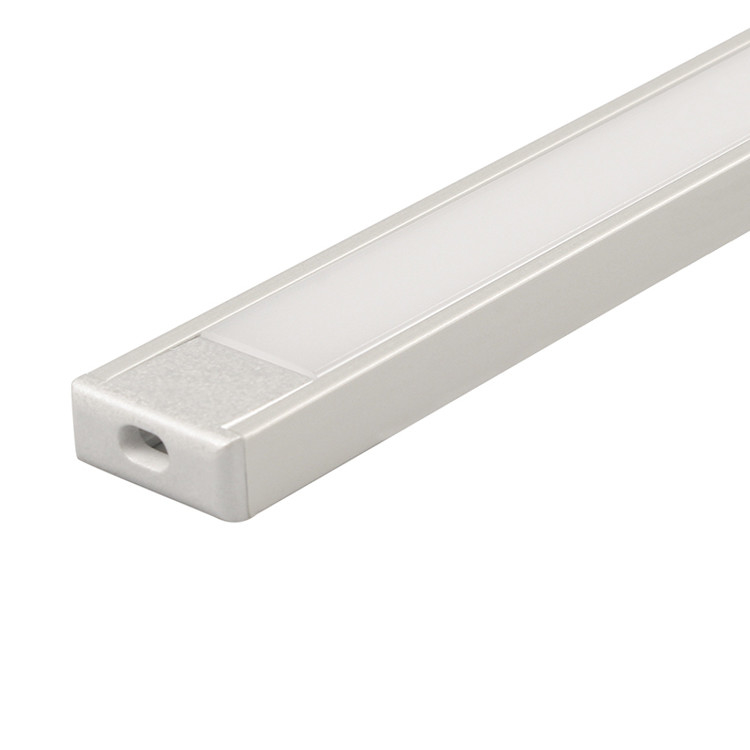

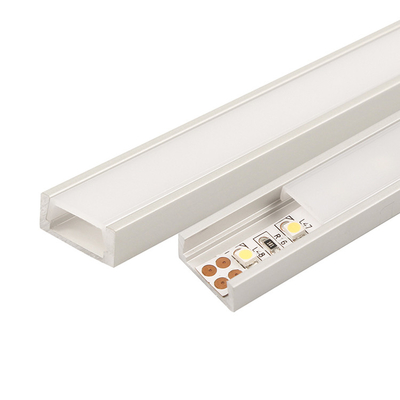

Our extrusion made from high quality aluminum is designed for flexible or rigid LED strips at any width. One of the accessories offered for the extrusion are covers that shade and protect LEDs inside the profile. There are few types of PC covers:Black, Opal, Diffuser, Clear, which allow you to obtain a 60 degree light angle. Covers are made of polycarbonate. Standard polypropylene end caps, electricity -conductive end caps, and mounting brackets (made from steel, zinc or chrome finish) can be used for the extrusion as supplementary accessories. End caps protect the extrusion from dust and other undesirable elements, which can make LED strips dirty and consequently deteriorate the quality of their light output. The extrusion can be mounted to surfaces with the use of double sided adhesive tape or mounting brackets. The mounting bracket guarantees easy and secure mounting of the extrusion surface. They can also work as connector between two extrusions.
Applications:
The extrusion with the LED light source is mostly used as interior lighting, especially to light cabinets, stairs, glass cases, or as a decoration light for a niche in drywall ceilings.
Advantages:
1.Small dimensions allow the profile to fit in a variety of locations such as housings interiors, exhibits, shelving units, and stair cases.
2.Lightweight, very good heat dissipation, and environment friendly.
Dimension(mm):
LED Strip Profile Specifications:
| Name | ADP-1606 |
| PC Cover | Clear, Diffuser, Opal, Black |
| Dimension | 15.8X6.7mm |
| PCB Width | 11mm |
| LED QTY | 240LED/m or above |
| Suitable LED | 2110/2014/2216/2835/3014/3528 |
| Installation method | Embedded installation, Ceiling mounted installation. |
PC Cover:
LED Strip Profile Accessories:
|
|
|
| End cap with hole | End cap without hole | Mounting clip |
Surface Mounted LED Aluminum Profile:
Different types of LED strip diffuser
LED Aluminum Channels also called LED Profiles, LED Extrusions, LED Housing, LED Strip Channels, Aluminium Profile LED, LED Aluminum Channels or LED Aluminum Profiles. Aluminum profiles for LED tape light fit seamlessly into grooves in cabinets, stairs, ceilings, closets, floors, and walls.
Adled is a professional LED Strip light manufacturer, we provide full range of LED strip lights aluminum profile.
• Lens Aluminum Extrusion
• Corner Aluminum Extrusion
• Flanged LED Profile
• Surface Mount Aluminum Extrusion
• Recess Mount Aluminum Extrusion
• Flush Installation LED Aluminum Extrusion
• Round LED Aluminum Extrusion
• Low Profile LED Channel
Why choose LED light strip diffuser?
You can see clearly from the picture, LED strip with diffuser provides spotless lighting, it looks more softer and comforable than spot lighting LED strip lights without diffuser cover. LED strip channel with diffuser is important in lighting, it can protect your eyes. Also, LED aluminum strip can installed flatly, offer more beautiful lights in even illumination.
